Cable Cleats for Short Circuit Protection

Panduit’s extensive line of cable cleat solutions ensures cables remain contained in the event of a short circuit fault, minimizing disruption and damage to personnel and property. Panduit’s Cable Cleats are uniquely engineered for ease of installation in a range of applications and harsh environments, including industries such as Oil and Gas, Power Generation, Mining, and Shipbuilding.

Here is a 10-minute video in Hebrew explaining Panduit Cable Cleats:

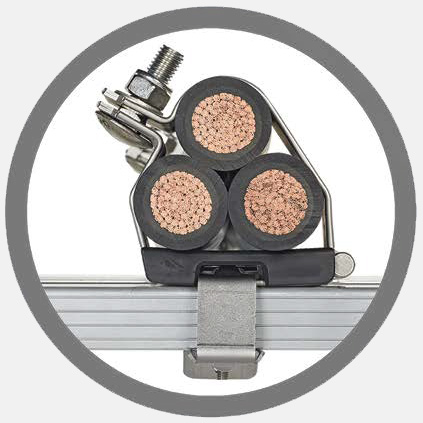

Stainless Steel Trefoil Cable Cleat

The Stainless Steel Trefoil Cable Cleat offers protection against extreme environments and high short circuit current faults. It is made of 316L stainless steel, available in multiple sizes with cable range taking capability, and suitable for trefoil cable arrangements.

For more info click here

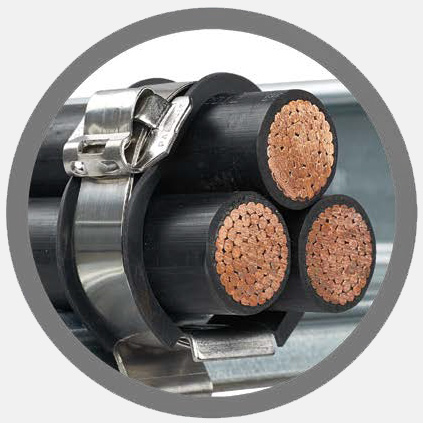

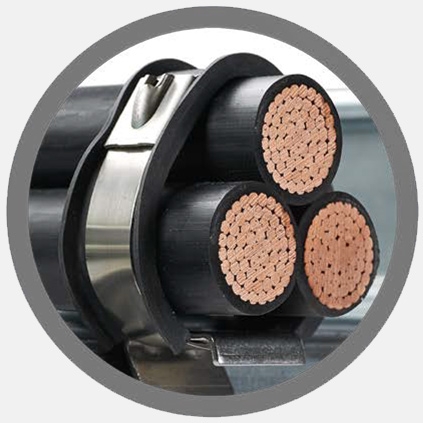

Stainless Steel Buckle Strap Cable Cleat

The Stainless Steel Buckle Strap Cleat offers protection against high short circuit fault current requirements in harsh environments.
The strap is made of 316L stainless steel, has inherent cable range-taking, and is compatible with a variety of cables.

For more info click here




Stainless Steel Locking Strap Cleat

The Stainless Steel Locking Strap Cleat speeds up installation with a unique self-locking head design. The smooth and safe 316 AISI stainless steel locking strap passes through the head twice, providing additional strength in short circuit applications.

For more info click here

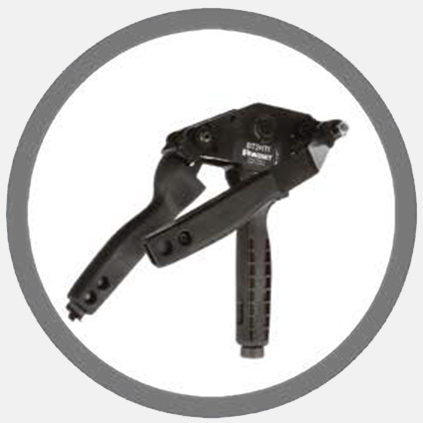

BT2HTI Installation Tool

The BT2HTI is a ratchet-style installation tool, allowing for high tension with minimal effort.

For more info click here

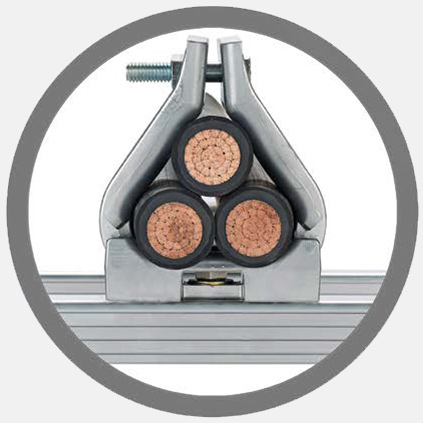

Aluminum Trefoil Cleat

The Aluminum Trefoil Cable Cleat is ideal for medium-high short circuit faults in less corrosive environments. It is available in multiple sizes with cable range-taking capability and is suitable for trefoil cable arrangements.

For more info click here

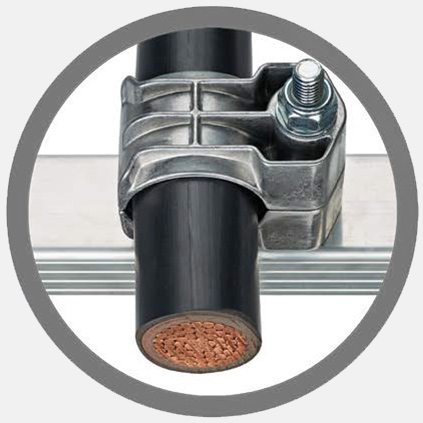

Aluminum One-Hole Cleat

The Aluminum One-Hole Cleat is ideal for lower to medium short circuit faults in less corrosive environments. It is available in multiple sizes with cable range-taking capability and is suitable for single conductor cables.

For more info click here

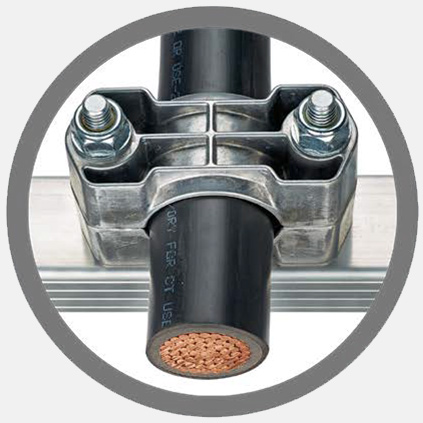

Aluminum Two-Hole Cleat

The Aluminum Two-Hole Cleat is ideal for medium-high short circuit faults in less corrosive environments. It is available in multiple sizes with cable range-taking capability and is suitable for single conductor cables.

For more info click here

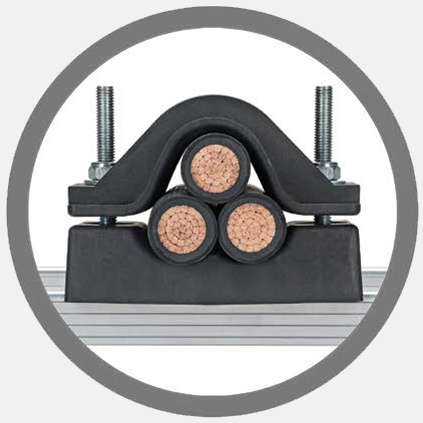

Polymer Trefoil Cleat

The Polymer Trefoil Cleat is designed for medium-high short circuit faults in less harsh environments. It is available in multiple sizes with cable range-taking capability.

For more info click here

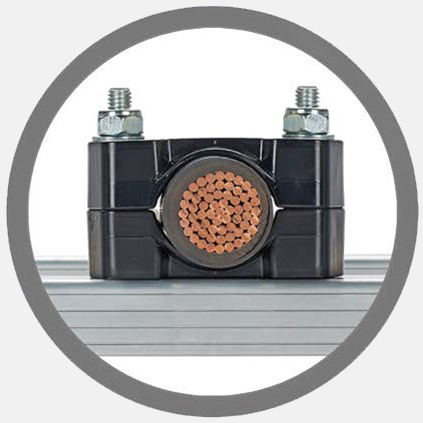

Polymer Two-Hole Cleat

The Polymer Two-Hole Cleat is designed for lower to medium short circuit faults in less harsh environments. It is available in multiple sizes with cable range-taking capability.

For more info click here

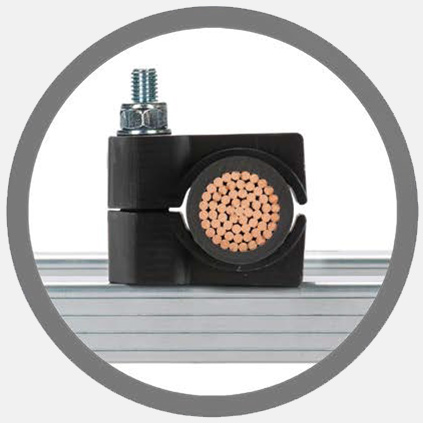

Polymer One-Hole Cleat

The Polymer One-Hole Cleat is ideal for lower to medium short circuit faults in less harsh environments. It is available in multiple sizes with cable range-taking capability and is suitable for single conductor cable arrangements.

For more info click here





Selecting the right Cable Cleat has never been so easy using the Panduit Cleat kAlculator App

To assist design engineers in specifying the correct cleat and spacing, Panduit has developed their own app.

Available in iOS and Android, once downloaded, the user can input information such as cable layout, cable diameter and peak fault level.

Based upon the results of independent laboratory short circuit testing the Cleat kAlculator app will suggest a cleat type and recommend the correct cleat spacing. If there is more than one option to match the inquiry, the app will offer a choice and the user can assess the benefits of each option.

Results can also be saved on the device and emailed.
